RF-Clown v2: The Wireless Beast Just Got a Boost

描述

1. Product Introduction

RF CLOWN V2.0 is an upgraded, open-source wireless security research and testing tool. Known as the “Wireless Beast,” this version features a triple-radio setup for significantly enhanced performance in analyzing and disrupting BLE (Bluetooth Low
Energy) and Classic Bluetooth signals. It is designed for cybersecurity professionals, researchers, and hobbyists for educational and testing purposes.

2. Technical Specifications

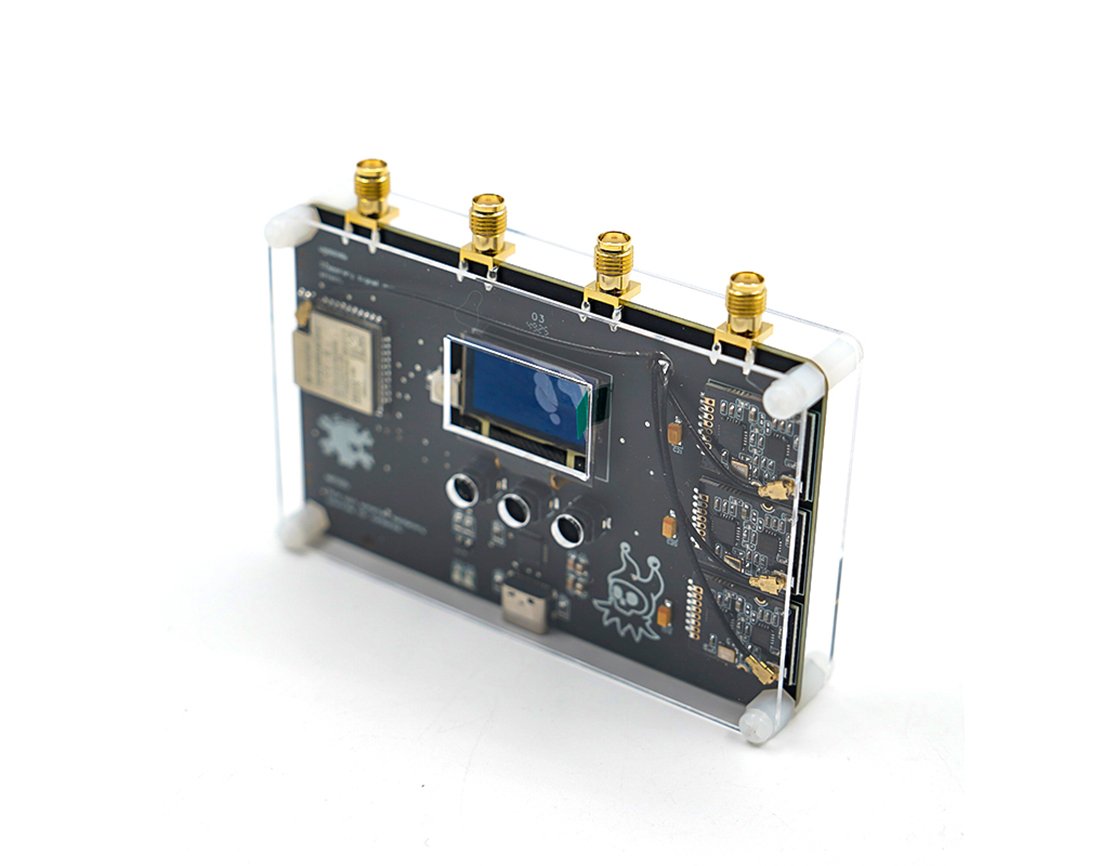

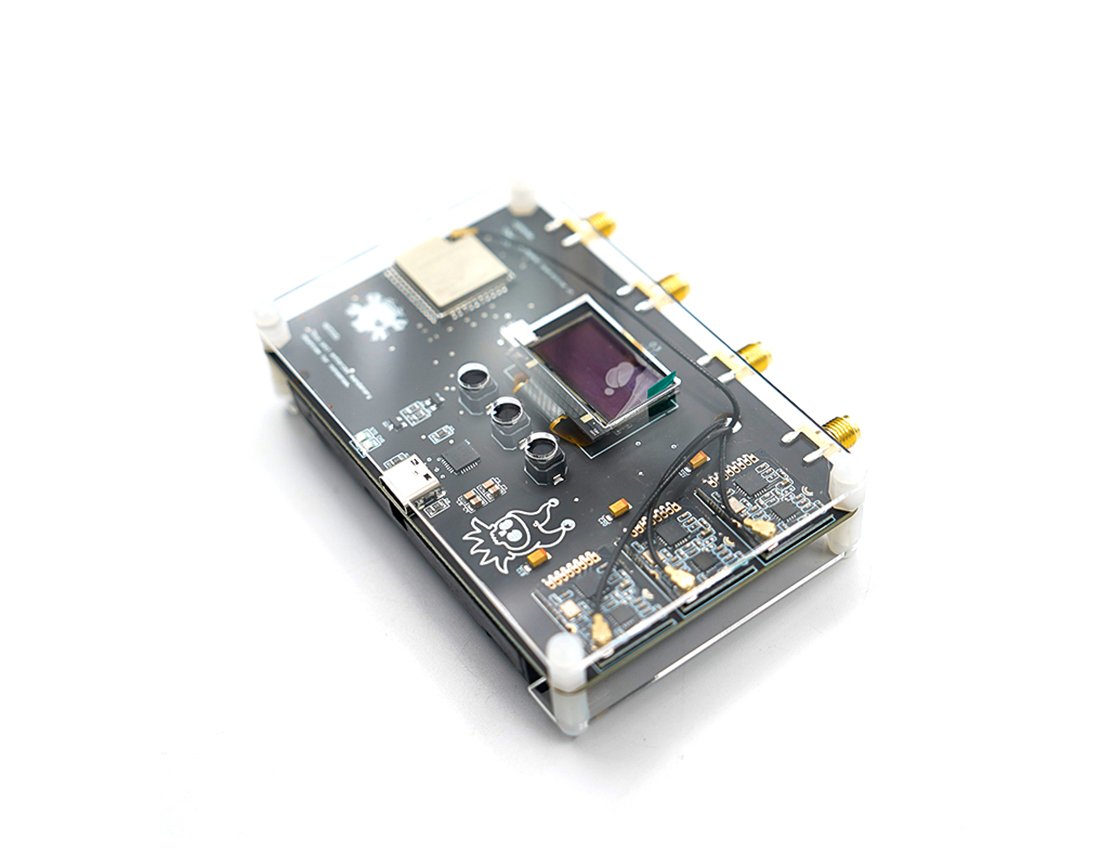

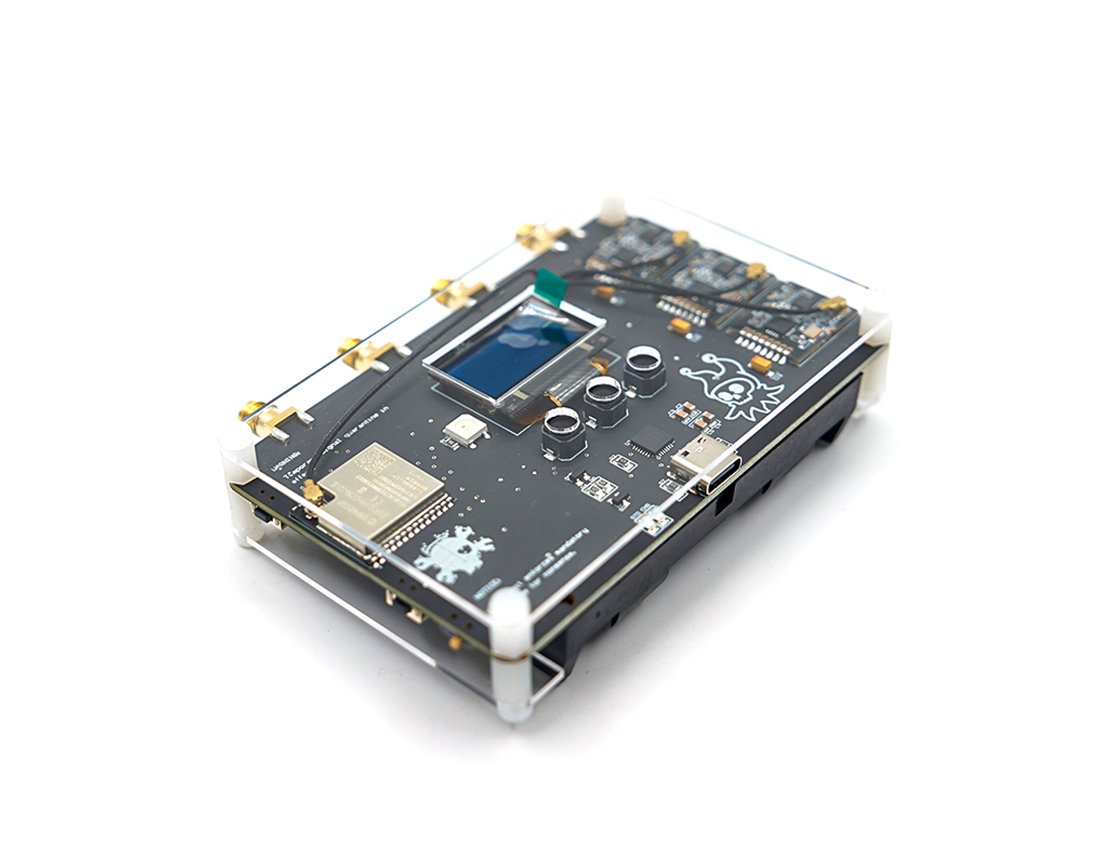

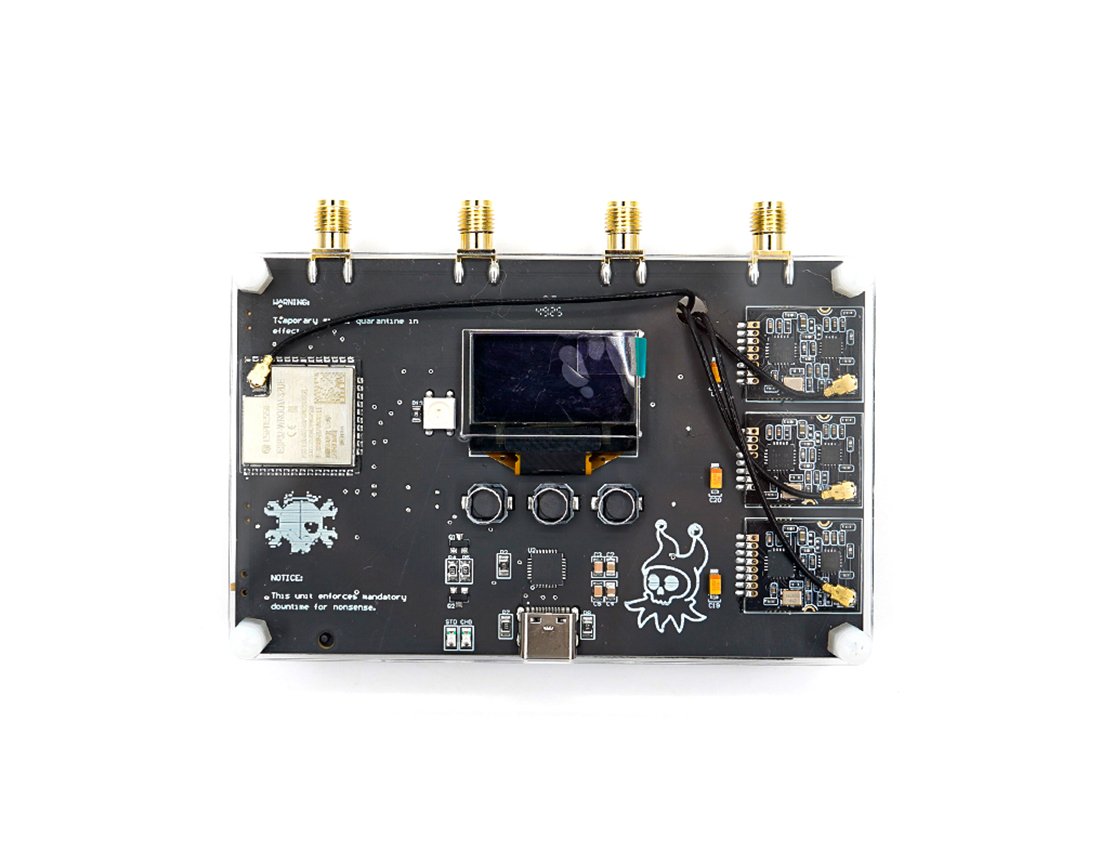

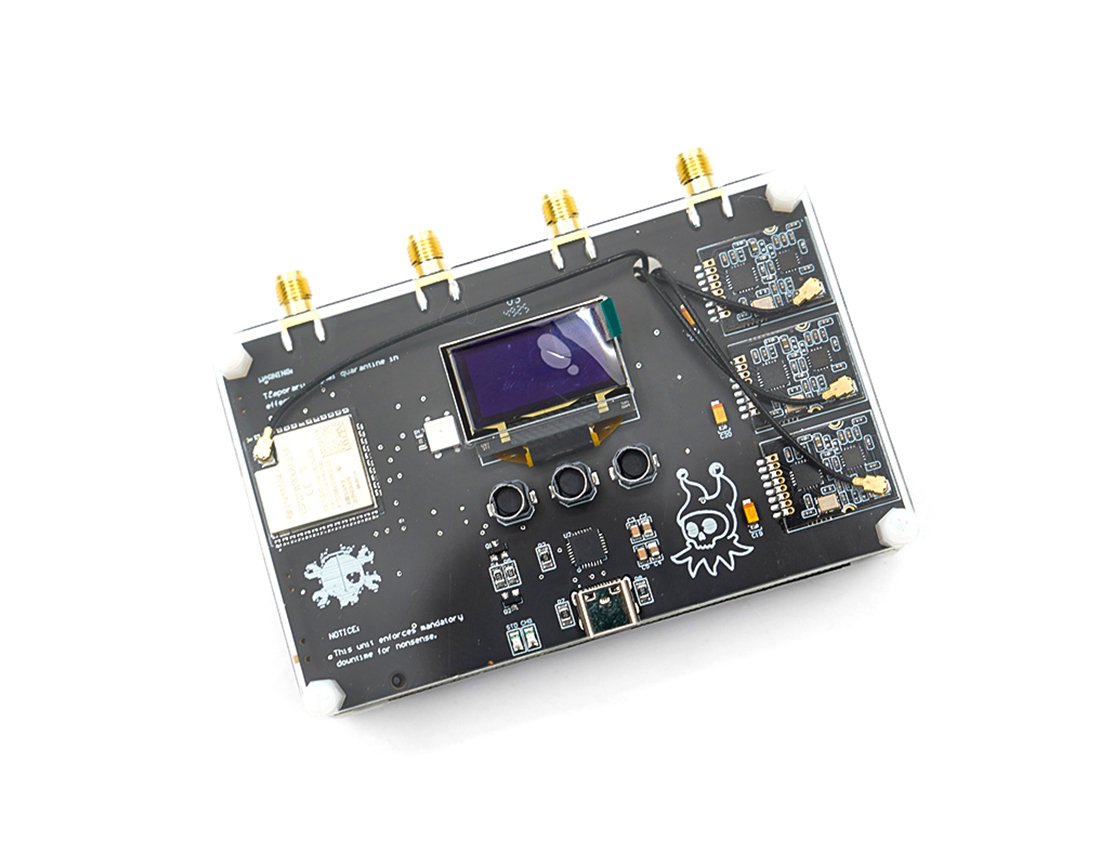

·Main Controller: ESP32-WROOM-32U (32-bit dual-core processor)

·Radio Modules: 3× GT24 Mini (NRF24L01 compatible) high-performance transceivers

·Display: 0.96-inch OLED screen for real-time menu navigation

·Indicator: 1× NeoPixel RGB LED for status feedback

·Antennas: 4× IPEX connectors with 8 dBi high-gain external antennas

·Power Management: Integrated TP4056 lithium battery charger and LF33 voltage regulator

·Cooling: Optional heatsinks on radio modules for improved thermal stability during high-load operations

3. Key Features

·Triple-Radio Performance: The three-radio configuration provides wider frequency coverage and more reliable signal disruption compared to single or dual-radio versions.

·Multi-Mode Operation: Supports independent or simultaneous jamming/testing of BLE and Classic Bluetooth protocols.

·Interactive Interface: Features a 3-button navigation system (Scroll Up, Scroll Down, Select) for on-device mode switching without a PC.

·Status Indicators (NeoPixel):

·Green: Active / Operational.

Blue: Standby / Menu Navigation.

·Red: Error / Overheating Warning.

4. Quick Start Guide

1. Power On: Toggle the power switch. The OLED screen will initialize and display the main menu.
2. Navigate Menu: Use the two side buttons to scroll through available testing modes (e.g., BLE Jammer, Bluetooth Jammer, Combined Mode).
3. Execute Mode: Press the center ‘Select’ button to start the selected function. The NeoPixel will turn green.
4. Stop/Back: Press the ‘Select’ button again or use the navigation buttons to return to the main menu.
5. Charging: Connect a USB cable to charge the internal battery. The onboard charging circuit will handle power distribution.

5. Safety & Compliance Disclaimer

·Educational Use Only: This device is intended for research, testing, and educational purposes in controlled environments.

·Regulatory Warning: Unauthorized jamming of wireless signals is illegal in many jurisdictions. Users are responsible for complying with local laws regarding radio frequency emissions.

·Medical Interference: DO NOT use near sensitive medical equipment, as Bluetooth signal disruption can interfere with life-critical devices.

Includes Rechargeable Li-ion Battery
