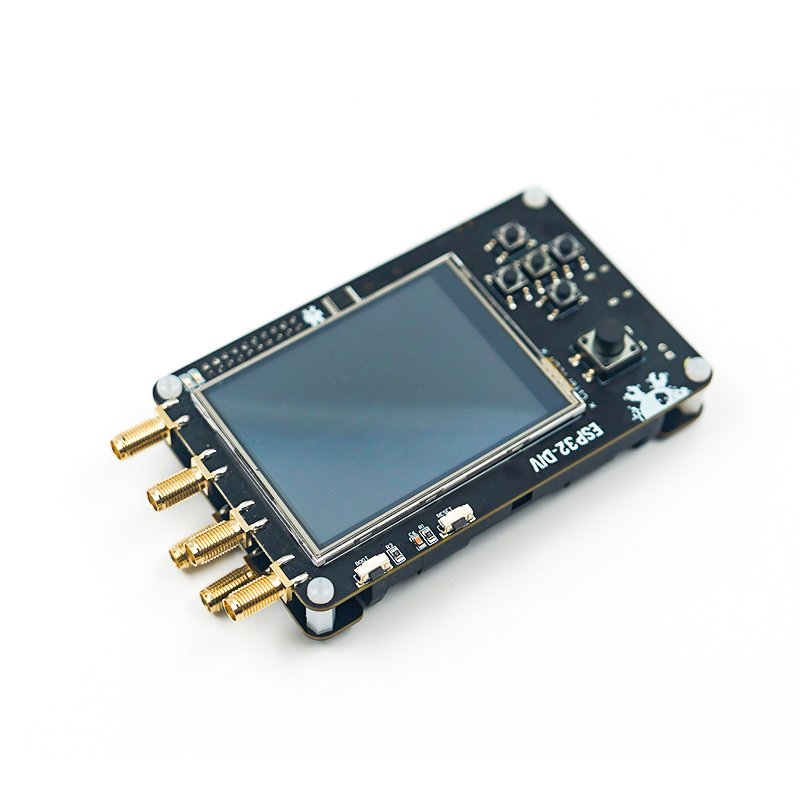

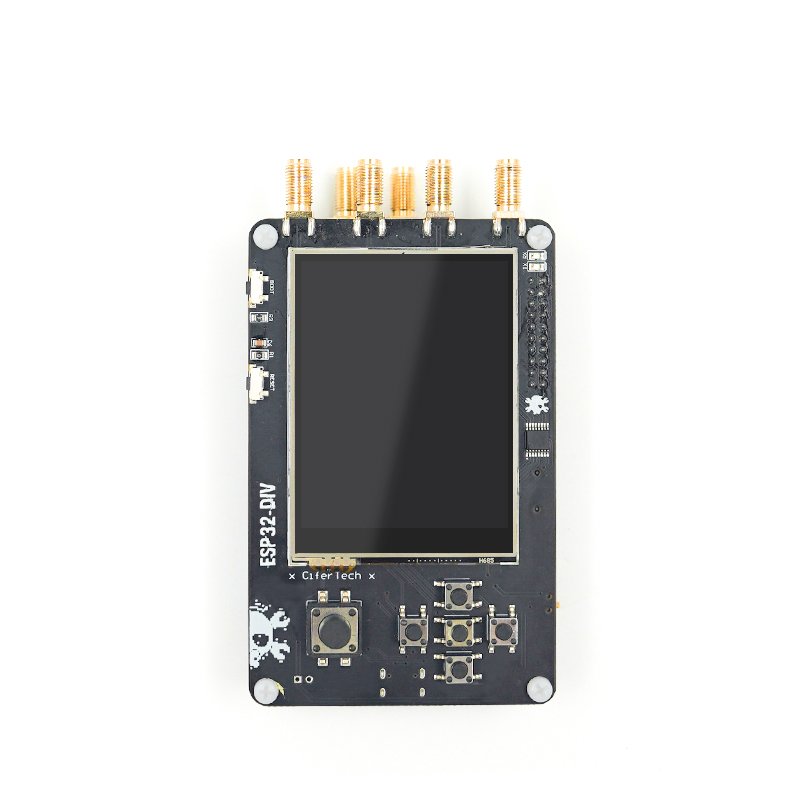

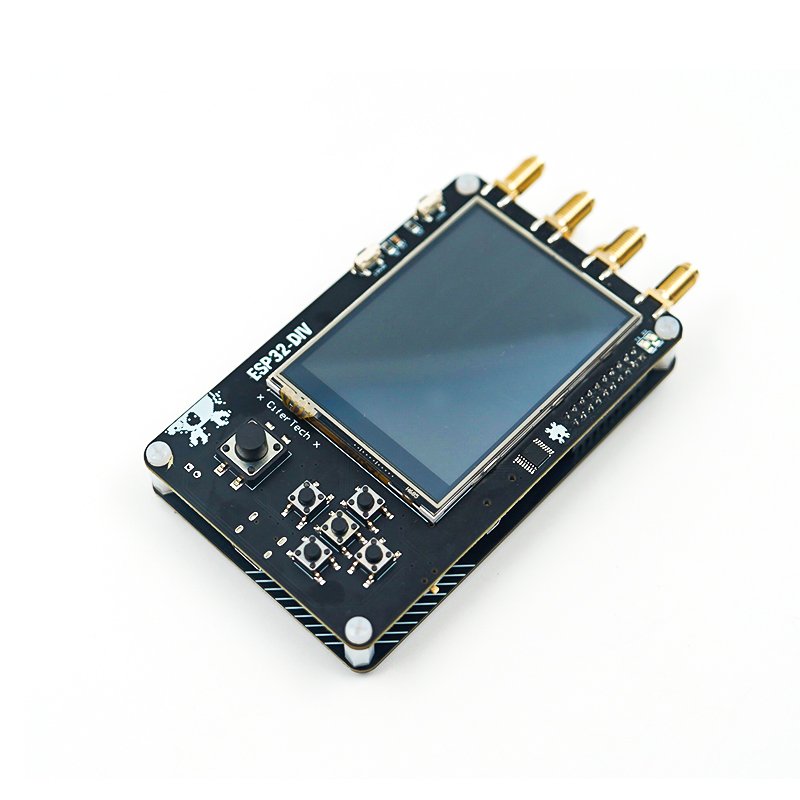

ESP32-DIV Kit NRF24 CC1101 2.8-inch touch screen with 18650 battery holder and charge management Type-C socket

描述

The ESP32DlV and Shell have some problem didnotfix based on the original design.Please read them below.
1. Memory card related code needs improve.
2. Battery capacity detection related code needs improve.
3. Touchscreen related code needs improve.
4.NRF24 related code needs improve(only two of the threeNRF24 modules are effective).
5. Overall UXoperation logic needs improve.
Please note about the function of the product and ifyou place the order means you know about all abovemessage.We will do not refund if you claim thesame problem we listed above.

The purpose we provide this device is that may engineer or enthusiasts want to check the handware and software of the device and maybe they can do some improvement.So if you have the ability to improve,then you can get one.Or please do not place the order.Thank you.

I. Specifications
SP32-DIV Specifications and Applications
1. Configuration

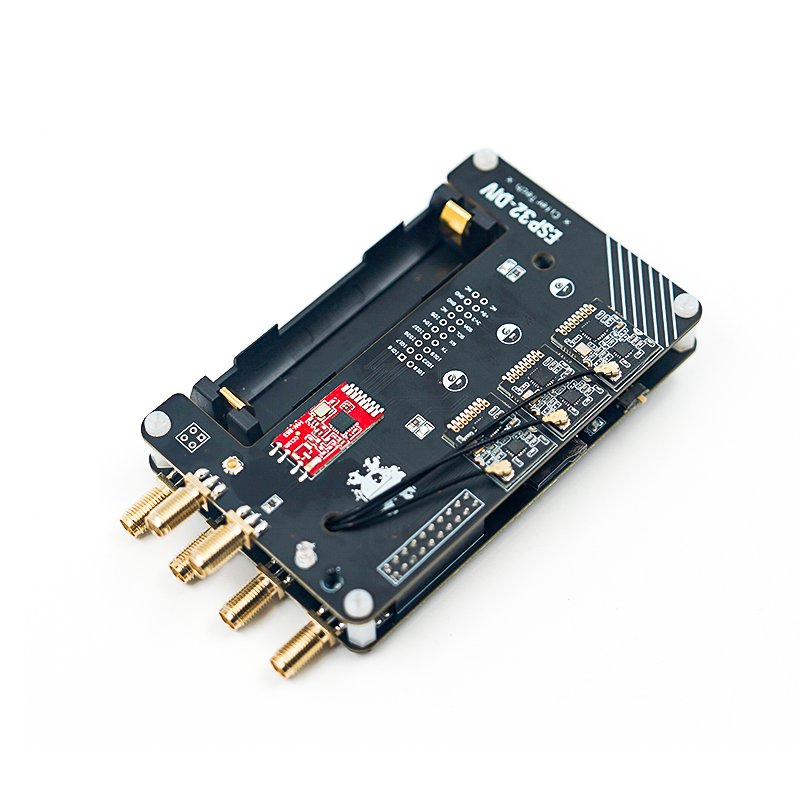

Three NRF24 RF chips
One CC1101 RF chip
Two infrared remote control transceiver LEDs
ESP32 built-in Wi-Fi + Bluetooth front-end
2.8-inch touch screen
MicroSD card socket
D-PAD control keypad
18650 battery holder and charge management
Type-C socket
2. RF Specifications
Three 2.4 GHz to 2.525 GHz channels
One Sub-1 GHz channel
ESP32 built-in BLE and Wi-Fi proprietary IP
II. Applications
1. Sub-1 GHz RF replay attack
Barrier gate remote control
Electric vehicle remote control
Bumper car remote control
2. 2.4 GHz frequency band analysis and interference
2.4 GHz Wi-Fi band interference
Classic Bluetooth band interference
BLE band interference
3. Bluetooth penetration testing
Apple device pop-up attack
Bluetooth sniffing
Bluetooth MAC address scanning
4. Wi-Fi penetration testing
Wi-Fi packet monitoring
Wi-Fi SSID attack
Wi-Fi disconnection attack
Other attack detection
Wi-Fi scanning
Evil hotspot attack
