LimeSDR XTRX RF Development Boards
Original price was: $1,499.00.$1,024.00Current price is: $1,024.00.
BUY FROM Mouser

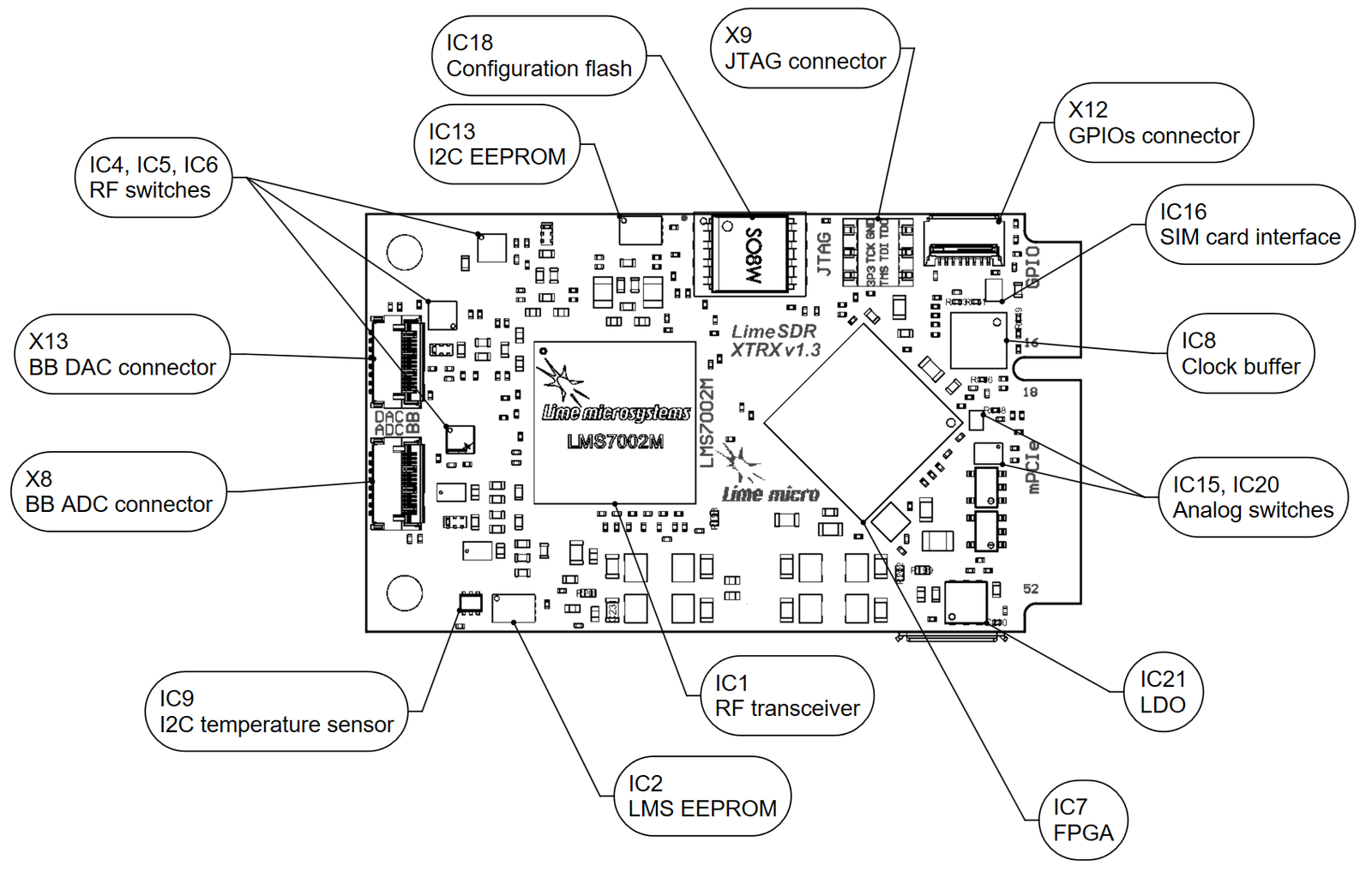

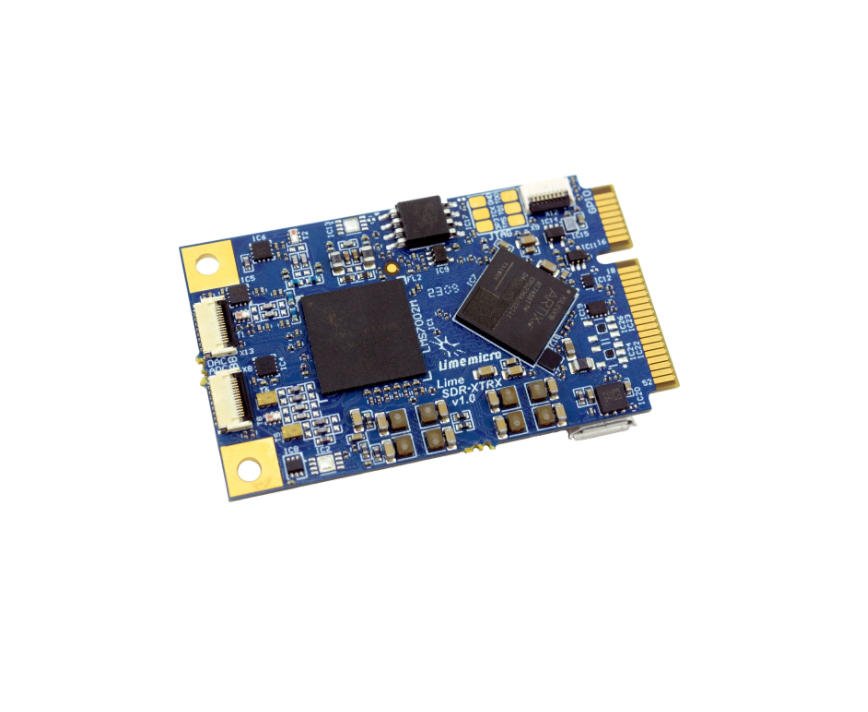

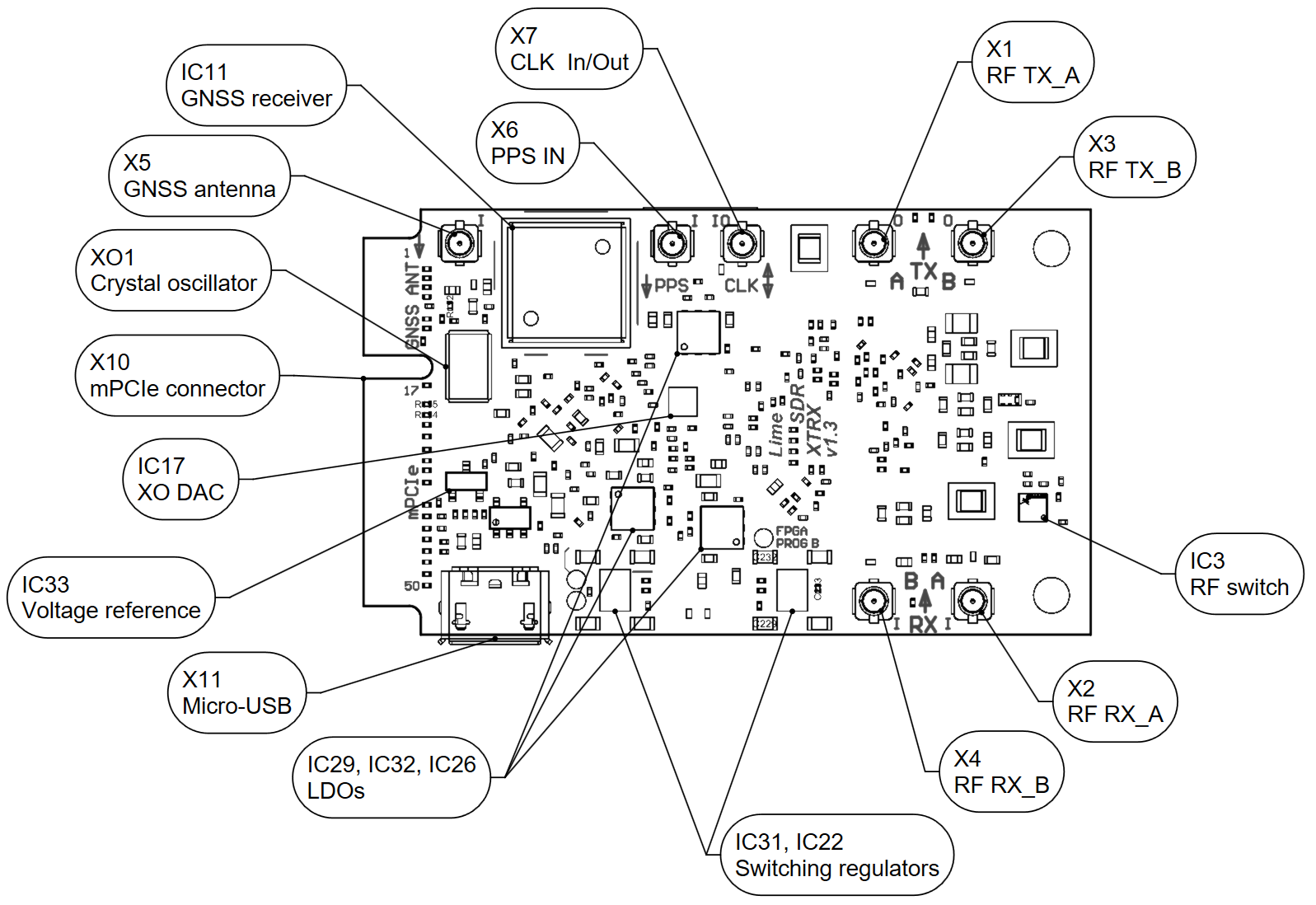

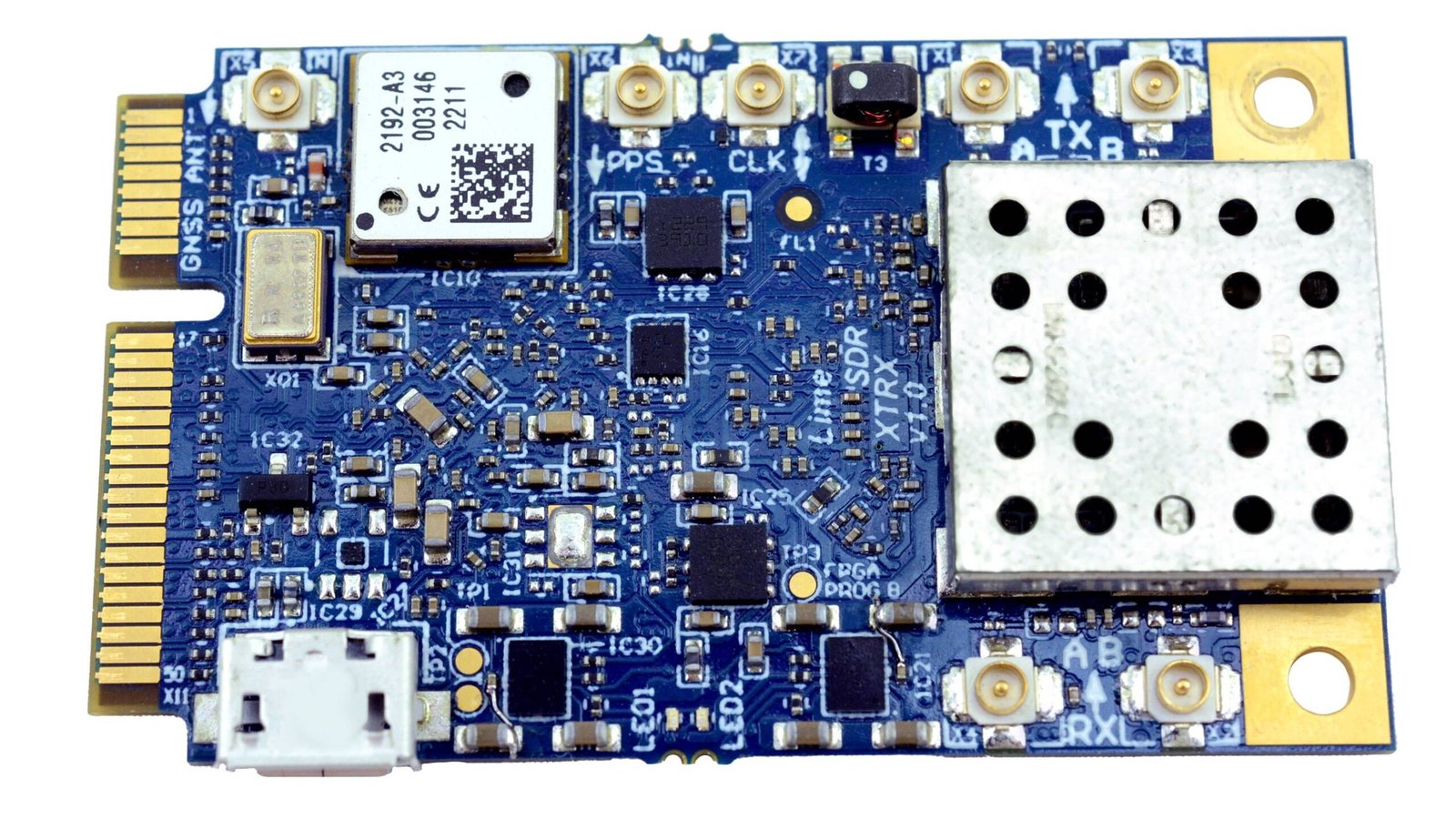

LimeSDR XTRX is high-performance software-defined radio (SDR) board in a compact Mini PCIe form factor which has been optimised for embedding into larger designs. With an AMD Artix™ 7 XC7A50T-2CPG236I FPGA and a Lime Microsystems LMS7002M RF transceiver at its core, LimeSDR XTRX is a perfect platform for developing logic-intensive digital and RF designs.
LimeSDR XTRX can be used as a building block for MIMO configurations from 2Tx2R to 32Tx32R, and in conjunction with digital processors (ASICs, GPPs and GPUs) of varying speed, power dissipation, and cost to fit any air interface, whether narrowband or broadband.
LimeSDR XTRX is based on the Fairwaves XTRX Rev 5, with many many refinements and updates, plus comprehensive software support via the Lime Suite NG driver stack and plug-in modules.
Description
RF Transceiver
RF transceiver: Lime Microsystems LMS7002M
Configuration: MIMO (2xTX, 2xRX)
Frequency range: 30 MHz – 3.8 GHz
Bandwidth: 120 MHz
Sample depth: 12 bit
Sample rate: 120 MSPS SISO / 90 MSPS MIMO
Transmit power: max 10 dBm (depending on frequency)
FPGA
FPGA: AMD Artix™ 7 XC7A50T-2CPG236I
236-pin CSBGA package (10mm x 10mm, 0.5mm)
52160 LUTs logic capacity
2700 Kb Embedded Memory
600 Kb distributed RAM
120 x 18×18-bit multipliers
5 x PLL
4 x DLL
106 x IO
FPGA configuration via JTAG
FLASH Memory
FLASH Memory: 256 Mb Flash memory for FPGA configuration
Clock system
26.00 MHz (or 30.72 MHz) onboard VCTCXO
VCTCXO may be tuned by onboard DAC
Reference clock input and output connector (U.FL)
GPIO
2 x green LEDs
4 x GPIO 3.3V in GPIO connector
1 x GPIO in baseband connectors
USB 2.0 Controller
USB 2.0 controller: Microchip USB3333E-GL
Temperature Sensor
Temperature sensor: TMP1075NDRLR
EEPROM Memory
Open menu
128 Kb EEPROM for LMS MCU firmware (optional)
128 Kb EEPROM for FPGA data (optional)
Connectors
USB 2.0 (Micro-B) socket
Coaxial RF (U.FL female) connectors
FPGA GPIO 8-pin FPC connector
FPGA JTAG connector (unpopulated)
Mini PCIe edge connector
RF baseband 15-pin FPC connectors
Dimensions
Dimensions: 50.8mm x 29.7mm (Mini PCIe form factor)
Power sources
USB connector (5 V)
Mini PCIe (3.3 V)
